TPED ISO Rho 1266 200bar CO2 Bottle Argon Nitrogen Helium Air Cylinder

TPED ISO Rho 1266 200bar CO2 Bottle Argon Nitrogen Helium Air Cylinder

  •  HS
  •  Made in China
  •  15 to 30 days
  •  Annual output of more than 800,000 pieces

TPED CO2 Argon tanks Nitrogen Helium Air O2 cylinder
Gas cylinders should be stored in a cool, dry place, away from heat sources (such as sunlight, heating, fire). Combustible gas cylinders must be stored separately from oxygen cylinders.
34CRMo4 alloy steel; TPED 89mm-232mm cylinder outer diameter; 0.8 litres to 50 litres; ISO9809-1 standard; The working pressure of industrial gas cylinders is 200bar; Hydrostatic test pressure is 300bar;
Never allow oil or other inflammable organic matter to be attached to cylinders (especially valve nozzles and pressure relief valves). Cotton, hemp and other materials shall not be used to plug leaks, to prevent combustion accidents.
Oxygen cylinder body weight is 1.60kg-72.4kg; The minimum design wall thickness of industrial oxygen cylinder is 2.4mm-6.2mm; The maximum gas storage capacity of industrial gas tank is 0.12m3-12m3 (150L-12000L); Cylinder mouth threads include PZ19.2,PZ27.8,PZ39; 25E; 3/4-14 NGT, etc.; The height of the industrial cylinder body is 197mm-1520mm;
When using gas from a cylinder, use a pressure reducing valve (barometer). All kinds of gas barometer should not be mixed, in case of explosion.
Alias: TPED Air cylinders；TPED Oxygen Cylinders,TPED Cylinders,TPD Tanks,TPD Carbon dioxide cylinders

Category:

TPED200bar CO2 Bottle Argon Nitrogen Helium  Air Cylinder

Gas cylinders — 17E and 25E taper threads for connection of valves to gas cylinders

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Each member body interested in a subject for which a technical committee has been established has the right to be represented on that committee.

International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

1、Minimum order quantity: 100 only

2、Use cylinders:Our seamless steel cylinders are widely used in industry, medical devices, fire fighting and scientific research

3、We are China’s gas cylinder production factory, product sales:China, Southeast Asia, Middle East, Asia, Africa, Europe, Oceania, America

4、ISO9809-1  standard is based on techniques used by cylinder manufacturers. Other techniques of ultrasonic examination may be used, provided these have been demonstrated to be suitable for the manufacturing method.

5、Ultrasonic examination(ISO9809-1)

Ultrasonic examination equipment shall be capable of at least detecting the reference standard notches described .

UT shall be serviced regularly in accordance with the manufacturer’s operating instructions to ensure that its accuracy is maintained. Inspection records and approval certificates for the equipment shall be maintained.

6、TPED200bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinder(ISO9809-1 TPED 200BAR)

Product parameters table

Type Outside

Diameter

(mm)

 Water

Capacity

(L)

 Bottle

Height

(mm)

 Weight

（kg）

 Working

pressure

（Bar）

 Design wall

thickness

（mm）

 Material

Grades
WGⅡ89-1L-200 89 1 240 1.83 200 2.0 34CrMo4
WGⅡ89-1.4L-200 89 1.4 310 2.30 200 2.0 34CrMo4
WGⅡ108-2.0L-200 108 2 310 3.62 200 2.4 34CrMo4
WGⅡ108-2.5L-200 108 2.5 374 4.29 200 2.4 34CrMo4
WGⅡ108-3.0L-200 108 3.0 440 4.96 200 2.4 34CrMo4
WGⅡ108-5.0L-200 108 5.0 696 7.74 200 2.4 34CrMo4
WGⅡ140-3.4L-200 140 3.4 324 5.3 200 3.1 34CrMo4
WGⅡ140-4.0L-200 140 4.0 375 5.89 200 3.1 34CrMo4
WGⅡ140-5.0L-200 140 5.0 447 6.96 200 3.1 34CrMo4
WGⅡ140-6.3L-200 140 6.3 540 7.88 200 3.1 34CrMo4
WGⅡ140-6.7-200 140 6.7 569 8.30 200 3.1 34CrMo4
WGⅡ140-8.0L-200 140 8.0 665 9.68 200 3.1 34CrMo4
WGⅡ140-9.0L-200 140 9.0 744 10.7 200 3.1 34CrMo4
WGⅡ140-10.0L-200 140 10.0 818 11.9 200 3.1 34CrMo4
WGⅡ159-8.0L-200 159 8.0 548 9.11 200 3.5 34CrMo4
WGⅡ159-10.0L-200 159 10.0 660 10.9 200 3.5 34CrMo4
WGⅡ159-12.0L-200 159 12.0 780 13.1 200 3.5 34CrMo4
WGⅡ159-13.4L-200 159 13.4 861 15.4 200 3.5 34CrMo4
WGⅡ159-15.0L-200 159 15.0 932 16.8 200 3.5 34CrMo4
WGⅡ165-10.0L-200 165 10.0 615 12.5 200 3.6 34CrMo4
WGⅡ165-12.0L-200 165 12.0 725 14.4 200 3.6 34CrMo4
WGⅡ165-15.0L-200 165 15.0 880 17.2 200 3.6 34CrMo4
WGⅡ180-20.0L-200 180 20.0 1012 24.8 200 3.9 34CrMo4
ISO219-40.0L-200 219 40.0 1300 48.0 200 5.7 34CrMo4
ISO232-40.0L-200 232 40.0 1167 43.0 200 6.0 34CrMo4
ISO232-46.7L-200 232 46.7 1345 48.9 200 6.0 34CrMo4
ISO232-47.0L-200 232 47 1351 49.0 200 6.0 34CrMo4
ISO232-50.0L-200 232 50.0 1450 57.7 200 6.0 34CrMo4

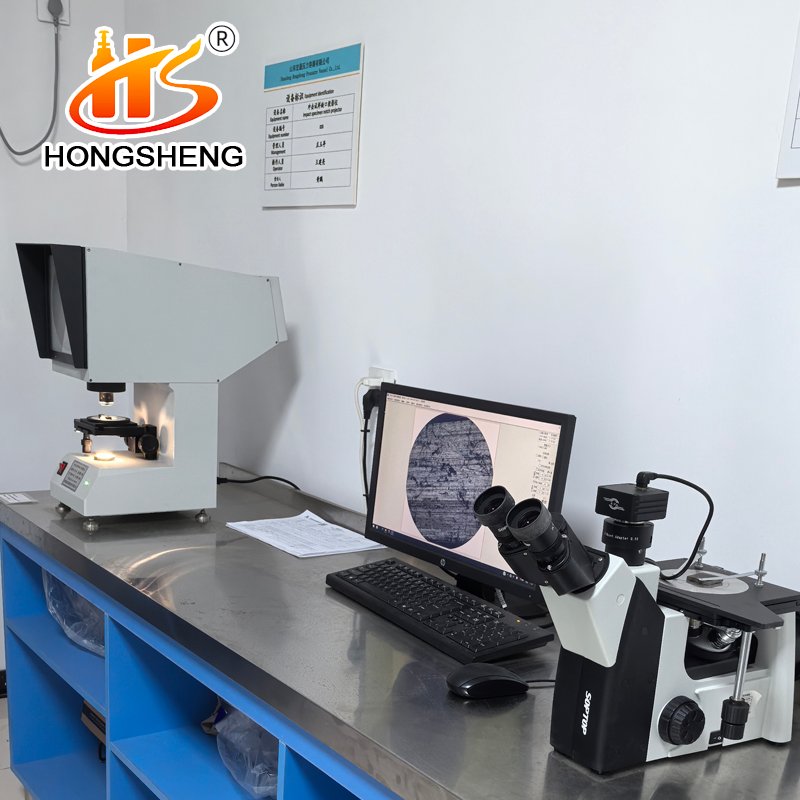

7、Gas cylinder testing instrument and test device

(1) Our company has the testing instruments and test devices required by the one-by-one inspection items and the batch inspection items of the licensed product manufacturing process, such as inspection platform, non-destructive testing, chemical analysis, tensile test, impact test, metallographic inspection and non-metal

Measurement of liner material performance, pressure test (external measurement method test device should be equipped with calibrated standard bottle), air tightness test, blasting test, pressure cycle test and other instruments and devices;

(2) Our company has the processing equipment needed for batch test sample preparation and the instruments and equipment needed for test sample.
