9L 150bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinders

  •  HS
  •  Made in China
  •  15 to 30 days
  •  Annual output of more than 800,000 pieces

9L 150bar CO2 bottle Argon Nitrogen Helium N2O Air cylinders
Gas cylinders should be placed neatly, with a good bottle cap, and properly fixed when placed vertically, with the head facing the same direction when placed horizontally;
9 litre oxygen cylinders; TUV ; 37 mn manganese steel; Gas cylinder production standard GB/T5099.3 or ISO9809-3; The outer diameter of the cylinder is 140mm; Oxygen cylinder hydrostatic test pressure is 250bar; Working pressure is 150bar;
Gas cylinders containing polymerization or decomposition reaction gases must be controlled according to the nature of the gas, the highest temperature in the warehouse, specified storage period, and should avoid radioactive sources.
Oxygen cylinder body height 744mm; Air bottle weight 10.7kg; Oxygen cylinder mouth thread PZ19.2,PZ27.8,PZ39; 25E; 3/4-14 NGT, etc.; Maximum oxygen tank capacity is 1.35m3 (1350 litres); The minimum design wall thickness of laughing cylinder is 3.8mm;
gas Cylinders: 150bar gas cylinders, TUV gas cylinders, TPED gas cylinders, TUV Air gas bottles, 250bar N2O cylinders;9 litre gas bottles; 9 litre gas cylinder; 9 litre gas tanks

Category:

9L 150bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinders

1、Minimum order quantity: 100 only

2、Use cylinders:Our seamless steel cylinders are widely used in industry, medical devices, fire fighting and scientific research

3、Products can be exported to countries or regions:China, Southeast Asia, Middle East, Asia, Africa, Europe, Oceania, America

4、Factory (we are the manufacturer)：Shandong Hongsheng Pressure Vessel Co., LTD

5、Capacity check of gas cylinder:

The manufacturer shall verify that the water capacity conforms to the design drawing

6、Certification of gas cylinders:

Each batch of cylinders shall be covered by a certificate signed by the inspector to the effect that the cylinders meet the requirements of this part of ISO 9809 in all respects.

Annex D provides a typical example of a suitably worded acceptance certificate. Other formats with at least the same content are also acceptable.

Copies of the certificate shall be issued to the manufacturer. The original certificate shall be retained by the inspector and the copies shall be retained by the manufacturer in accordance with the regulations of the relevant statutory authority.

NOTE Attention is drawn to national regulations which might have additional or overriding requirements concerning the issuing and retention of certificates.

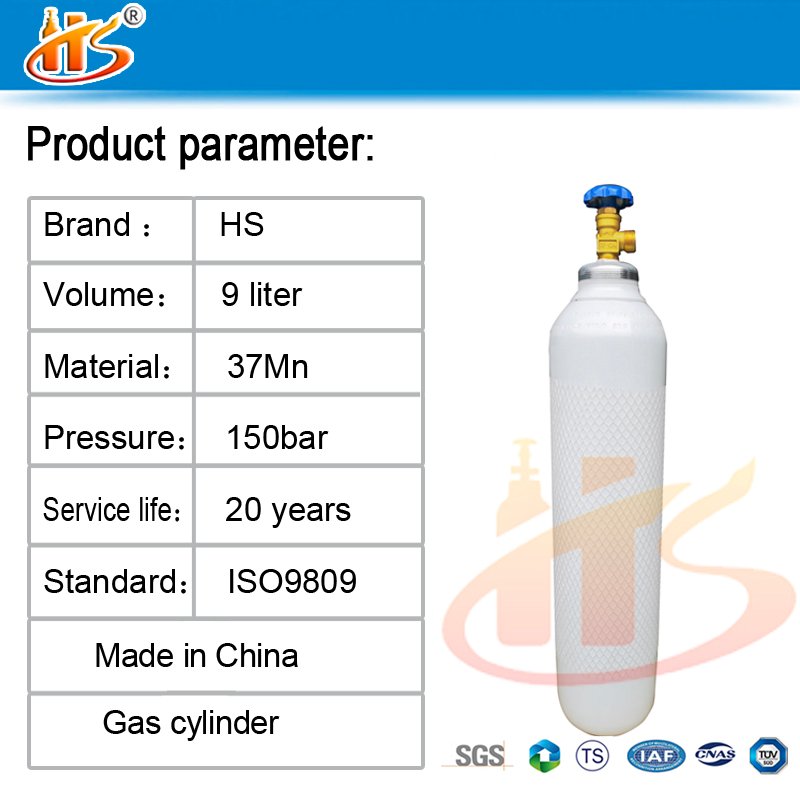

7、9 litre Gas Cylinder Product Parameters table (ISO9809-3 TUV 150BAR)

9L 150bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinders

Type Outside

Diameter

(mm)

 Water

Capacity

(L)

 Bottle

Height

(mm)

 Weight

（kg）

 Working

pressure

（Bar）

 Design wall

thickness

（mm）

 Material

Grades
WMⅡ140-9.0L-150 140 9.0 744 10.7 150 3.8 37MN
WMⅡ159-9.0L-150 159 9.0 600 10.5 150 3.9 37MN
