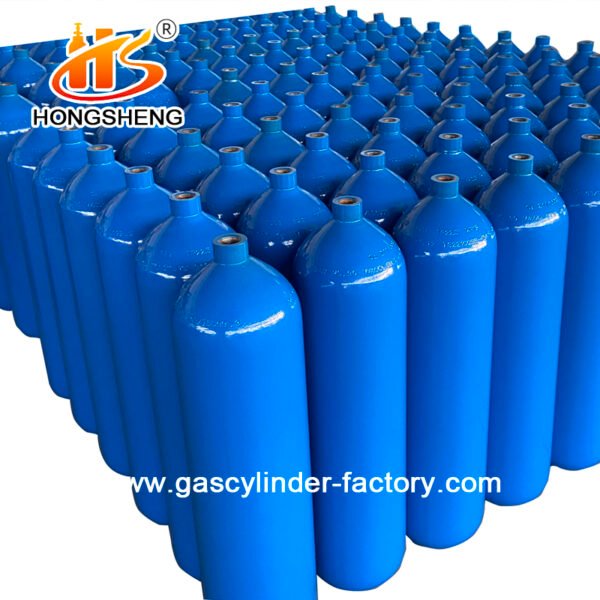

6L ISO9809 0.9M3 150bar 37MN Oxygen Tanks Gas Cylinders

• Brand: HS
• Product origin: Made in China
• Delivery time: 15 to 30 days
• Supply capacity: Annual output of more than 800,000 pieces

1、Can ensure that your order from raw materials into the factory, production, inspection, delivery and other processes, will be controlled from beginning to end, to ensure product quality.

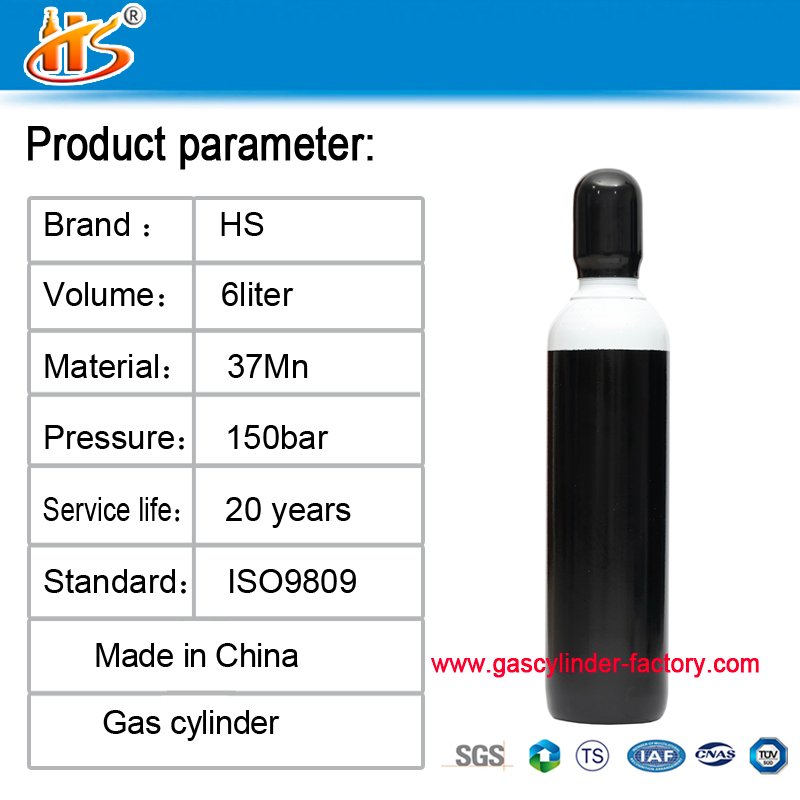

2、6 litres; 37 mn manganese steel; 140mm cylinder outer diameter; Iso9809-3 or GB/T5099.3 production standards; Hydrostatic test pressure is 250bar; Working pressure is 150bar;
3、The height of the cylinder body is 516mm; Cylinder mouth threads include PZ19.2,PZ27.8,PZ39; 25E; 3/4-14 NGT, etc.; Maximum gas storage is 0.9m3 (900 l); The minimum design wall thickness of the cylinder is 3.8mm; The cylinder body weight is 7.56kg;
4、As a professional manufacturer, we can design and manufacture gas cylinders according to customers’ special requirements.
5、Aliases: 6 litre gas cylinders; 0.9 m3 Oxygen tanks. 6 Litre Oxygen cylinders; 6 Litre Oxygen tanks; 150bar gas bottles
6、Wall thickness ：During production, each cylinder or semi-finished shell shall be examined for thickness. The wall thickness at any point shall be not less than the minimum thickness specified.
