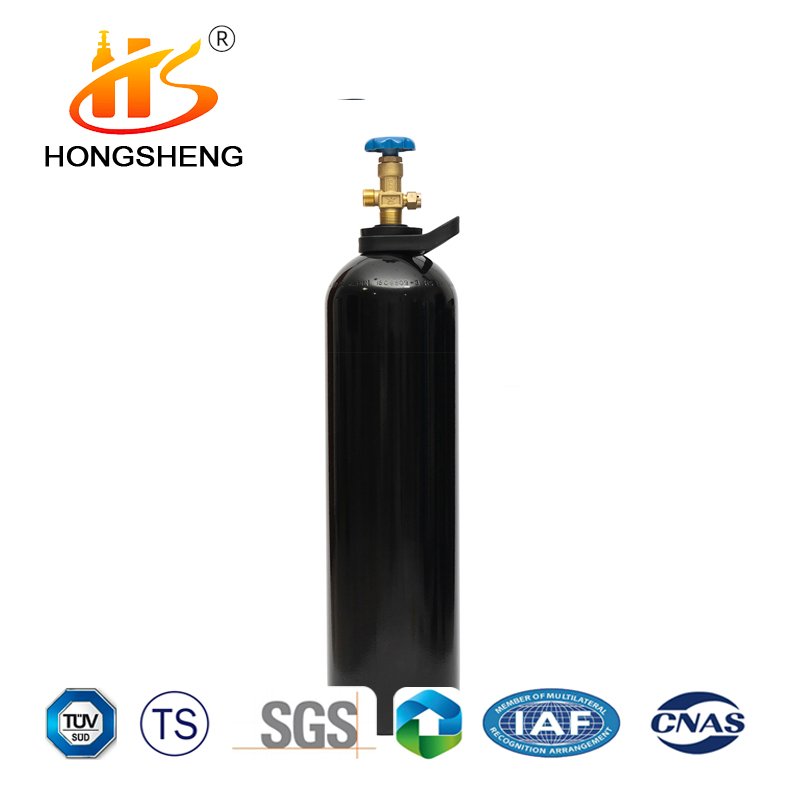

6.3 Ltr ISO9809 0.95M3 150bar 37MN Oxygen Tank Gas Cylinders
1、Minimum order quantity: 100 only
2、Use cylinders:Our seamless steel cylinders are widely used in industry, medical devices, fire fighting and scientific research
3、We are China’s gas cylinder production factory, product sales:China, Southeast Asia, Middle East, Asia, Africa, Europe, Oceania, America
4、We require that the test pressure should meet the nominal working pressure of the cylinder (e.g. 150bar/200bar, etc.).
When the air pressure at the bottom of the cylinder rises to the test pressure, hold the pressure for at least 60 seconds, and observe whether there are continuous bubbles in the groove at the bottom of the cylinder.
If bubbles emerge continuously during the pressure holding period, it indicates that the bottom of the bottle leakage is unqualified products; If not, it indicates that the gas cylinder bottom sealing is qualified products;
5、ISO9809-3 the main task of technical committees is to prepare International Standards. Draft International Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.

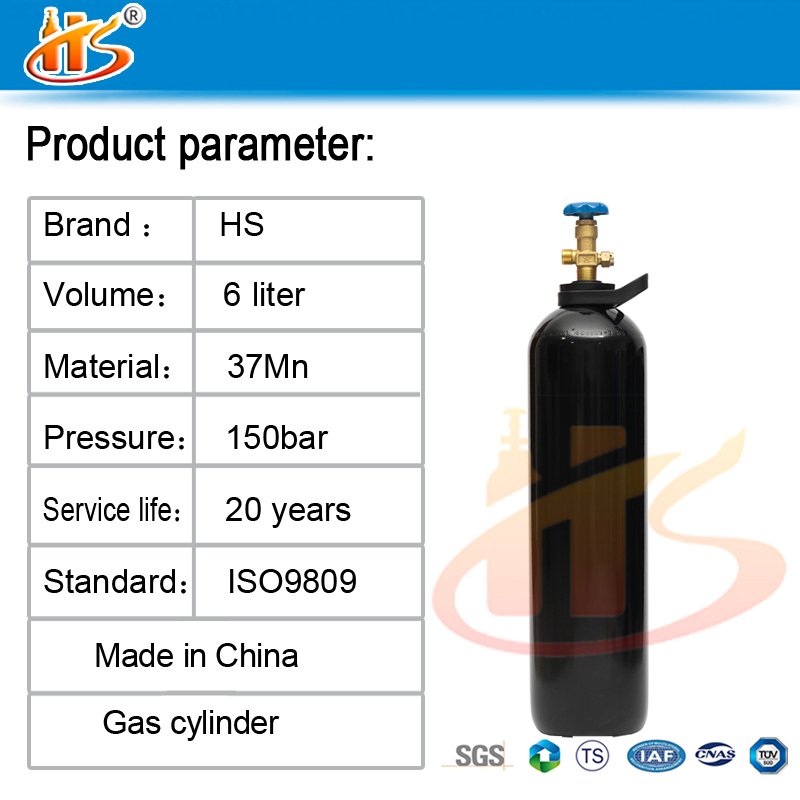

6、6.3 litre Gas Cylinder Product Parameters table (ISO9809-3)
| Type | Outside
Diameter (mm) |
Water
Capacity (L) |
Bottle
Height (mm) |
Weight
（kg） |
Working
pressure （Bar） |
Design wall
thickness （mm） |
Material
Grades |
| WMAⅡ140-6.3L-150 | 140 | 6.3 | 540 | 7.88 | 150 | 3.8 | 37MN |
