5L 150bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinders

  •  HS
  •  Made in China
  •  15 to 30 days
  •  Annual output of more than 800,000 pieces

5L 150bar CO2 bottle Argon Nitrogen Helium N2O Air cylinders
Tips for safe use of gas cylinders:

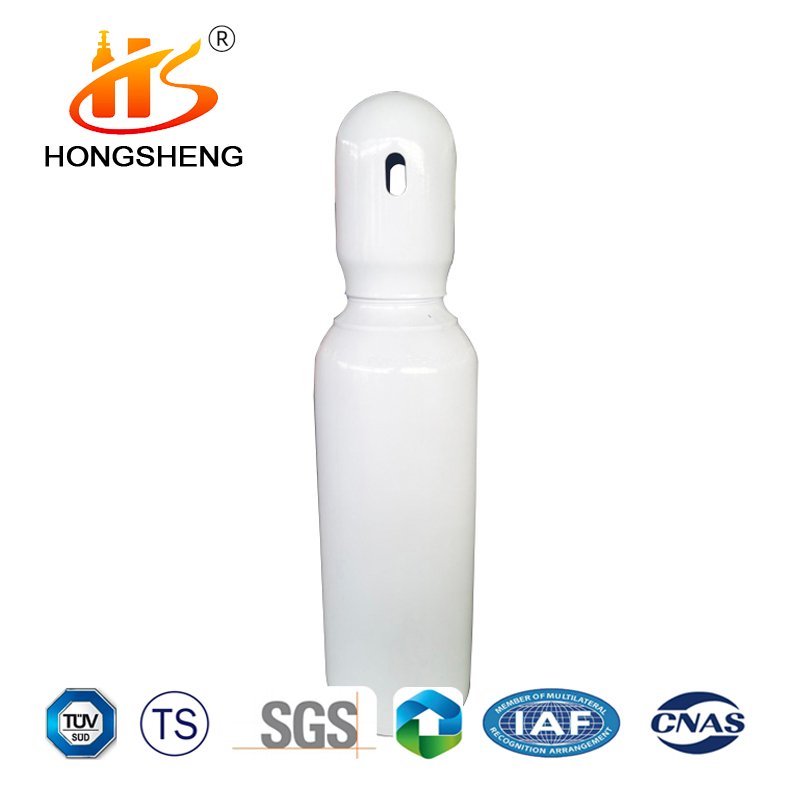

Bottle cap: it protects the cylinder valve. Its function is to prevent the cylinder valve from being damaged due to collision in the process of handling and using, or even causing serious accidents such as the cylinder valve flying out and the cylinder explosion.
The fixed safety bottle cap is strictly forbidden to be disassembled in the process of use. The space for installing the pressure reducer has been designed (except the disassembled bottle cap).

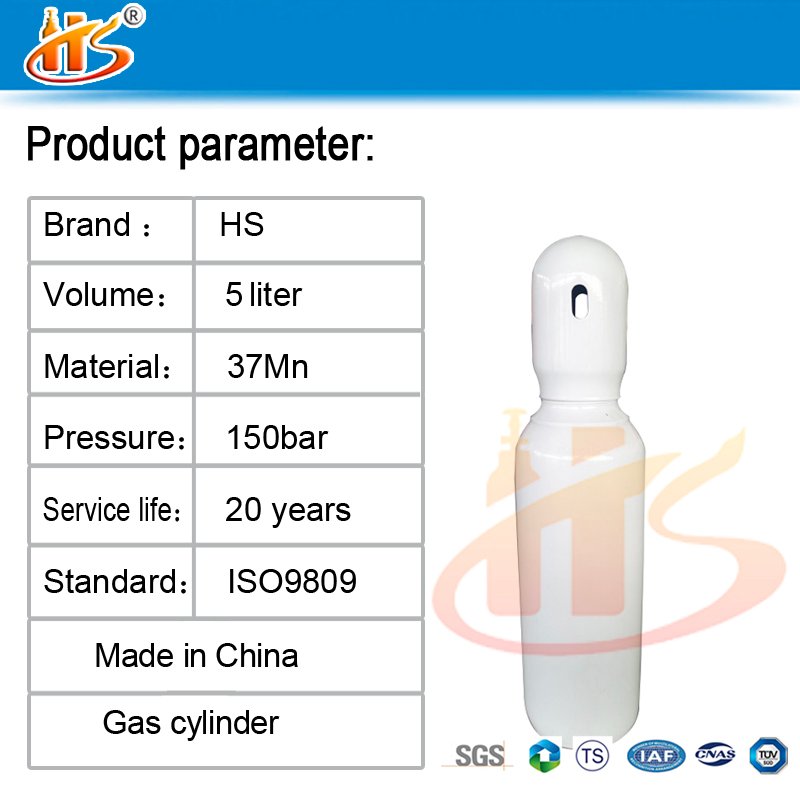

Product Information:
1、5 litres; 108mm or 140mm cylinder outer diameter; TUV ; Iso9809-3 or GB/T5099.3 production standards; 37 mn manganese steel; Hydrostatic test pressure is 250bar; Working pressure is 150bar;
2、The height of air cylinder body is 696mm or 447mm; Oxygen cylinder mouth threads include PZ19.2,PZ27.8,PZ39; 25E; 3/4-14 NGT, etc.; Maximum storage is 0.75m3 (750 l); The minimum design wall thickness of the cylinder is 2.9mm or 3.8; Nitrogen cylinder body weight is 7.64Kg or 6.96 Kg;
3、Alias: 5L gas cylinders, 5L bottles, N2O bottles, TUV CO2 gas bottles, 150bar Nitrogen cylinders;5 litre gas bottles; 5 litre gas cylinder; 5 litre gas tanks
Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.

Category:

5L 150bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinders

For flaw detection, the pulse echo system shall be used.

For thickness measurement, either the resonance method or the pulse echo system shall be used.

Either contact or immersion techniques of examination shall be used.

A coupling method which ensures adequate transmission of ultrasonic energy between the testing probe and the cylinder shall be used.

1、Minimum order quantity: 100 only

2、Use cylinders:Our seamless steel cylinders are widely used in industry, medical devices, fire fighting and scientific research

3、Products can be exported to countries or regions:China, Southeast Asia, Middle East, Asia, Africa, Europe, Oceania, America

4、Rejected cylinders

a) All rejected cylinders should be rendered unserviceable for their original application.

b) It may be possible to produce cylinders for different service conditions from rejected cylinders.

5、Ultrasonic examination of gas bottles:

The operation of the ultrasonic examination shall be by qualified and experienced personnel certified at least to Level 1 and supervised by personnel certified at least to Level 2 in accordance with ISO 9712.

Other standards which meet or exceed these minimum requirements may be used subject to approval by the inspector.

The inner and outer surfaces of any cylinder, which is to be examined ultrasonically shall be in a condition suitable for an accurate and reproducible examination.

6、5 litre Gas Cylinder Product Parameters table (ISO9809-3 TUV 150BAR)

5L 150bar CO2 Bottle Argon Nitrogen Helium N2O Air Cylinders

Type Outside

Diameter

(mm)

 Water

Capacity

(L)

 Bottle

Height

(mm)

 Weight

（kg）

 Working

pressure

（Bar）

 Design wall

thickness

（mm）

 Material

Grades
WMⅡ108-5.0L-150 108 5.0 696 7.65 150 2.9 37MN
WMⅡ40-5.0L-150 140 5.0 447 6.96 150 3.8 37MN
