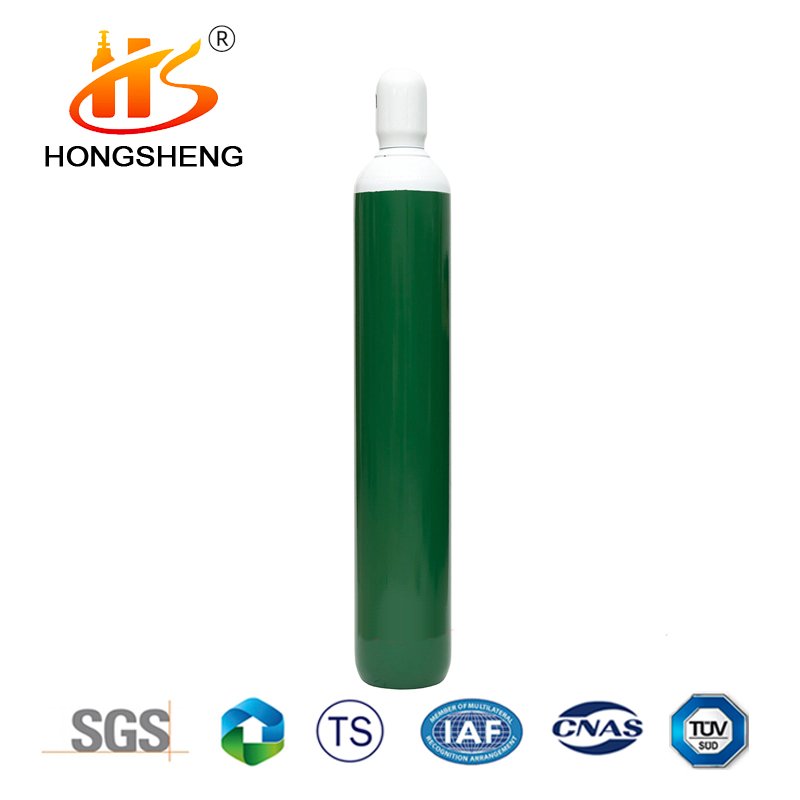

13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 2
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 3
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 4
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 5
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 6
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 7
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 8
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 9
13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder - Billede 10

13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder

  •  HS
  •  Fremstillet i Kina
  •  15 til 30 dage
  •  Årlig produktion på mere end 800.000 stykker

13.4L200bar ISO9809-1 CO2 cylinder Argon nitrogen helium N2O cylinder
According to the nature of filling medium, gas cylinders can be classified into permanent gas cylinders, liquefied gas cylinders and dissolved gas cylinders.
13,4-liters gasflasker; TUV; 37 mn manganstål; Oxygencylinderproduktionsstandard GB / T5099.3 eller ISO9809-3; Cylinderens ydre diameter er 140 mm eller 159 mm; Gascylinderens hydrostatiske testtryk er 250 bar; Arbejdstryk er 150 bar;
Gas cylinders are classified by manufacturing method: seamless steel cylinders, welded steel cylinders, wound glass fiber cylinders.

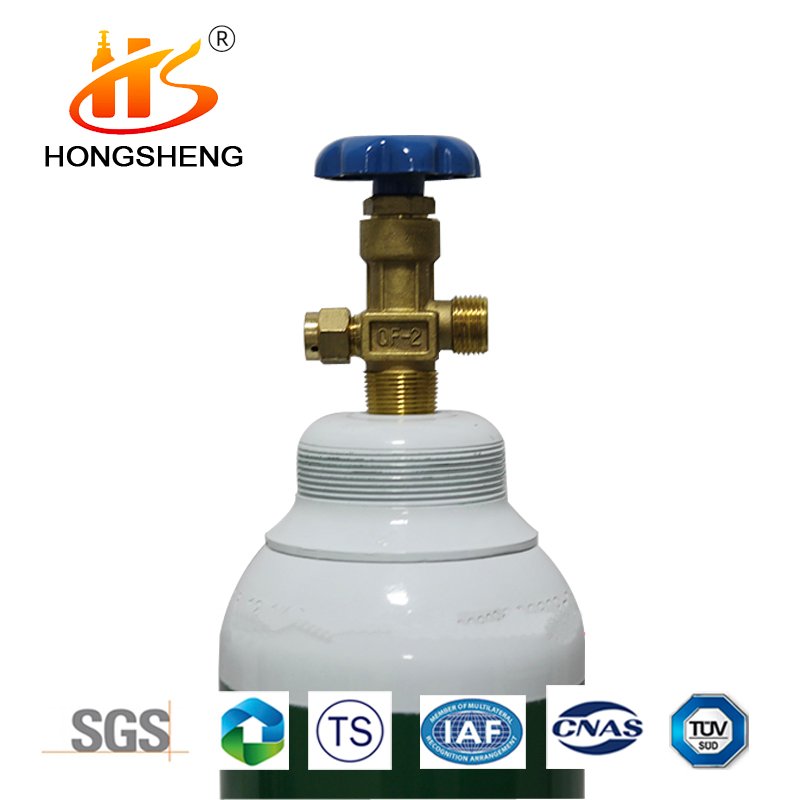

13.4 litre N2O cylinder height 1069mm or 861mm; Nitrogen bottle body weight 15.5kg or 15.4 kg; Cylinder mouth thread PZ27.8,25E; 3/4-14 NGT, etc.; The 13.4-litre helium bottle has a maximum storage capacity of 2m3 (2000 litres); The minimum design wall thickness of the cylinder is 4.3mm;
Cylinders are classified by nominal working pressure: cylinders are divided into high pressure cylinders and low pressure cylinders according to nominal working pressure.
Alias: 13.4L cylinders; gas Bottles, 13.4L N2O gas tanks, 13.4L N2O gas tanks, 150bar Nitrogen bottles; 13.4 Litre 200bar gas cylinders; 13.4L Litre 200bar gas bottles; 13.4 litre 200bar gas tanks;
Among them, oxygen, acetylene, liquefied gas, carbon dioxide gas cylinders are common in the construction site. The colors of gas cylinders are light blue with oxygen, white with acetylene, silver ash with liquefied petroleum gas, and aluminum white with liquefied carbon dioxide.

Kategori:

13.4L200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder

Leak test of gas tanks:

The manufacturer shall employ such manufacturing techniques and apply such tests as will demonstrate to the satisfaction of the inspector that the cylinders do not leak.

1 、 Mindste ordremængde: Kun 100 stk.

2、For cylinders with base ends formed by spinning, the following are three examples of typical testing procedures:

⎯ a pneumatic leakage test where the bottom end shall be clean and free from all moisture on the test pressure side.

The inside area of the cylinder bottom surrounding the closure shall be subjected to a pressure equal to at least two thirds of the test pressure of the cylinder for a minimum of 1 min;

This area shall be not less than 20 mm in diameter around the closure and at least 6% of the total bottom area.

3、The opposite side shall be covered with water or another suitable medium and closely examined for indication of leakage; cylinders that leak shall be rejected;

⎯ a low pressure pneumatic test;

⎯ a helium leak test.

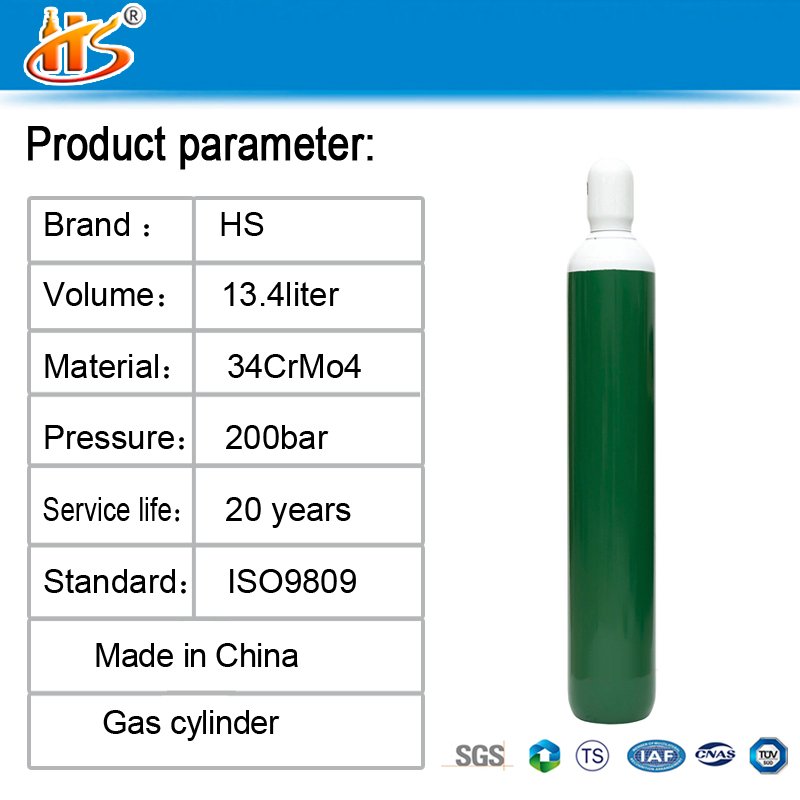

4、13.4L 200ba CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder (ISO9809-1 TPED 200BAR)

Type Udenfor

Diameter

(mm)

 Vand

Kapacitet

(L)

 Flaske

Højde

(mm)

 Vægt

（kg）

 Arbejde

Tryk

（Bar）

 Design væg

tykkelse

(mm)

 Materiale

Karakterer
WMAⅡ140-13.4L-200 140 13.4 1069 15.5 200 3.1 34CrMo4
WMAⅡ159-13.4L-200 159 13.4 861 15.4 200 3.5 34CrMo4
WMAⅡ180-13.4L-200 180 13.4 721 18.6 200 3.9 34CrMo4
