5L 200bar CO2 Argon Tanks Nitrogen Helium Oxygen Air Cylinder

• العلامة التجارية: النظام المنزلي
• أصل المنتج: صُنع في الصين
• وقت التسليم: من 15 إلى 30 يوماً
• سعة التوريد: إنتاج سنوي يزيد عن 800,000 قطعة سنوياً

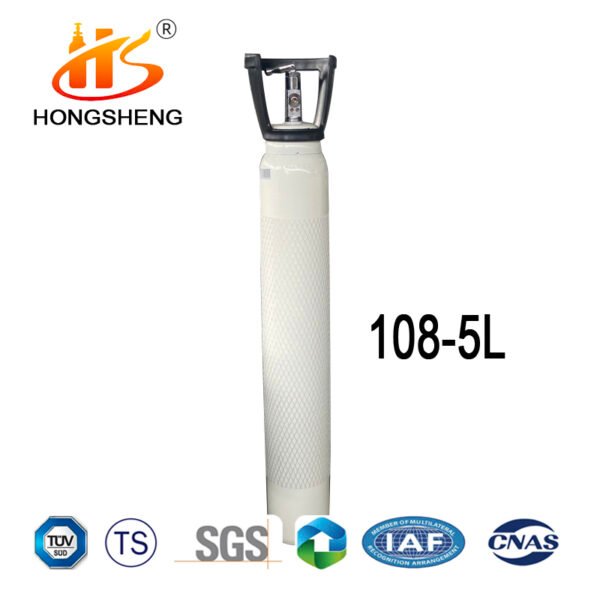

5L 200bar ISO9809-1 CO2 cylinder Argon nitrogen helium N2O cylinder
In order to avoid confusion in the use of various cylinders, the cylinder body is often painted in different colors and the name of the gas in the bottle is indicated.
ISO9809-1; 34 crmo4. TPED cylinder hydrostatic test pressure is 300bar; Working pressure is 200bar;5 litre gas tank; 108mm or 140mm cylinder outer diameter;
Alias:5L 200bar cylinders, 5L 200bar Gas Tanks,N2O Tanks,TPED CO2 Gas Tanks,200bar Oxygen Gas Tanks 5litre 200bar gas cylinders; 5litre 200bar gas bottles; 5litre 200bar gas tanks;
The pressure reducer selected on the high pressure gas cylinder should be classified and dedicated, and the screw buckle should be tightened to prevent leakage;
Open and close the pressure reducer and switch valve, the action must be slow;
When using, the switch valve should be turned first, then open the pressure reducer;
After use, first close the switch valve, exhaust the remaining gas, and then close the pressure reducer.
Do not only close the pressure reducer, not the switch valve.
The cylinder body weight is 7.64Kg or 6.96 Kg;The minimum design wall thickness of oxygen cylinder is 2.4mm or 3.1; 5 litre cylinder body height 696mm or 447mm; Oxygen cylinder mouth threads include PZ19.2,PZ27.8,25E; 3/4-14 NGT, etc.; The maximum storage capacity of the 5-litre laughing gas bottle is 1m3 (1000 litres);
