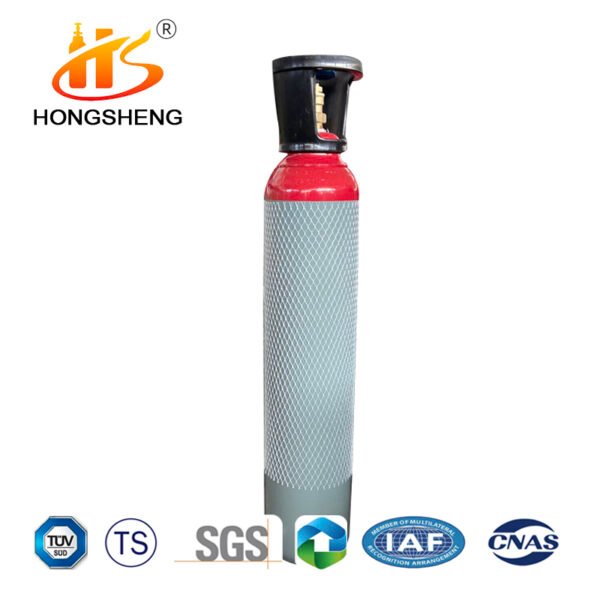

12L 200bar CO2 Argon Tanks Nitrogen Helium N2O Air Cylinder

• العلامة التجارية: النظام المنزلي
• أصل المنتج: صُنع في الصين
• وقت التسليم: من 15 إلى 30 يوماً
• سعة التوريد: إنتاج سنوي يزيد عن 800,000 قطعة سنوياً

12L 200bar ISO9809-1 CO2 cylinder Argon nitrogen helium N2O cylinder
Gas cylinder refers to a movable pressure vessel containing permanent gas, liquefied gas or dissolved gas that can be repeatedly filled under normal conditions.
12; 34CrMo4 alloy steel; Iso9809-1 production standard; TPED 140mm or 159mm or 165mm cylinder outer diameter; Working pressure 200bar; Hydraulic test pressure 300bar;
The gas cylinder is a kind of pressure equipment, with the danger of explosion, and its bearing medium generally has inflammable, explosive, toxic, strong corrosion and other properties, according to the manufacturing method can be divided into welding gas cylinder, controlled gas cylinder, drawing and stretching gas cylinder and winding gas cylinder.
The height of the 12-litre nitrogen bottle is 966mm or 780mm or 725mm; Oxygen cylinder body weight 14.3kg or 13.1 kg or 14.4 kg; Oxygen cylinder mouth thread PZ27.8; 25E; 3/4-14 NGT, etc.; The 12-litre nitrogen cylinder has a maximum gas storage capacity of 2.4m3 (2400 litres); The minimum design wall thickness of oxygen cylinder is 3.1mm-3.6mm;
Alias: 12L 200bar gas cylinders; 12L 200bar gas tanks,12L 200bar Argon gas cylinders,TPED Nitrogen gas cylinders,200bar Helium gas tanks; 12litre 200bar gas cylinders; 12litre 200bar gas bottles; 12litre 200bar gas tanks;
